Laser Specs

Width at Reference Height 0.30" (7.5mm)

Depth of Field 0.17" (4.4mm)

Data Resolution 0.000098" (2.5µm)

Profiler Accuracy 0.0001" (2.2µm)

System Specs

System Accuaracy 0.00038" (9.7µm)

Scan Travel 32.442" (824.03mm)

Y-Axis Travel 24" (609.6mm)

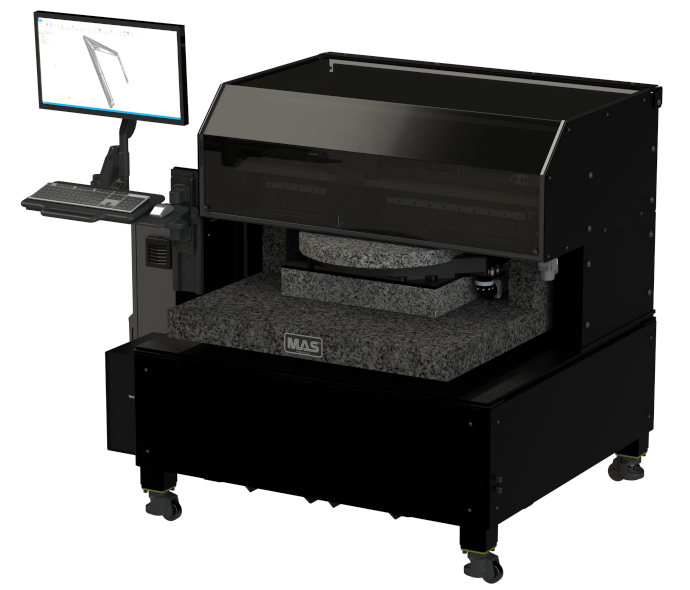

GaugeQC Bundle

SKU: N/A Category:

Additional information

Scanner

Keyence LJ-X8020, Keyence LJ-X8060, Keyence LJ-X8080, Keyence LJ-X8200

Laser Configuration

Single laser profiler, Back-to-back laser profiler

Part Position Motion Group

X (Scanning Axis Only), X,Y (Scan Axis + Perpendicular Axis), X,C (Scan Axis + Rotary Axis), X,Y,C (Scan + Perpendicular Axis + Rotary Axis)
